Self-priming roller pumps for PTO

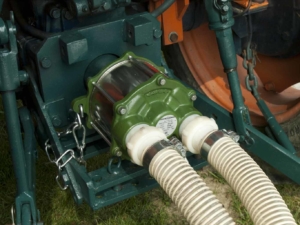

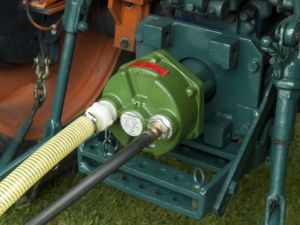

The ML and MT series pumps are the most popular pumps for agricultural activities, self-priming with rollers that are applied directly to the tractor PTO without using the cardan shaft.

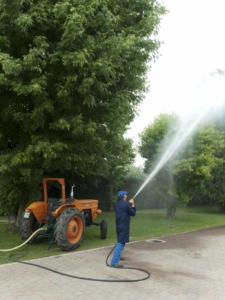

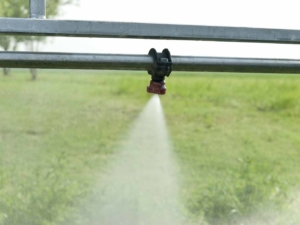

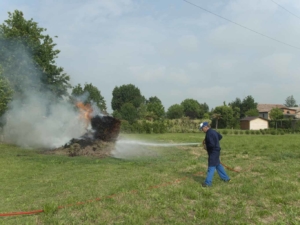

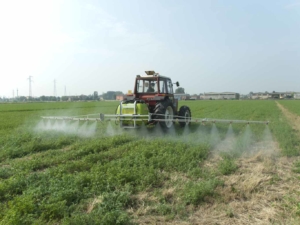

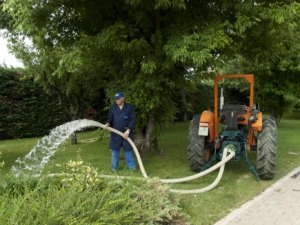

Thanks to the practicality of use and maintenance, they are popular pumps all over the world for agricultural activities, such as in high pressure washing operations, irrigation with or without sprinklers and in the presence of soils with high differences in level, transfer and nebulization.

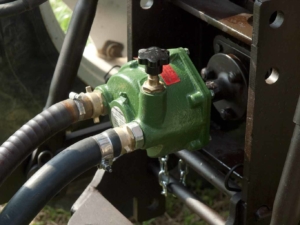

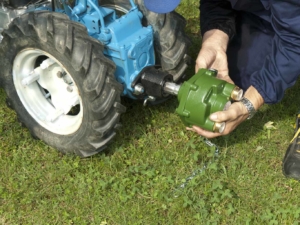

All models are equipped with a chain for anchoring the tractor to a fixed point. The “MLI 25” model is equipped with a brass pressure regulation valve, and is also the only one of our pumps equipped with an internal BY-PASS, allowing water recirculation. For application on walking tractors, a special adapter is required, available on request.

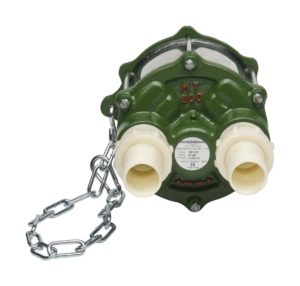

MT 600 cod. 0001.0281

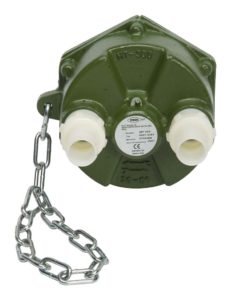

MT 300 cod. 0001.0391

ML 20 cod. 0030.0401

Read More

ML 20 30/30 cod. 0044.4013

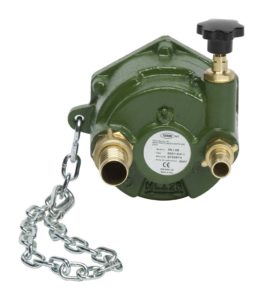

MLI 25 cod. 0031.0411

MLI 25 30/30 cod. 0031.0412

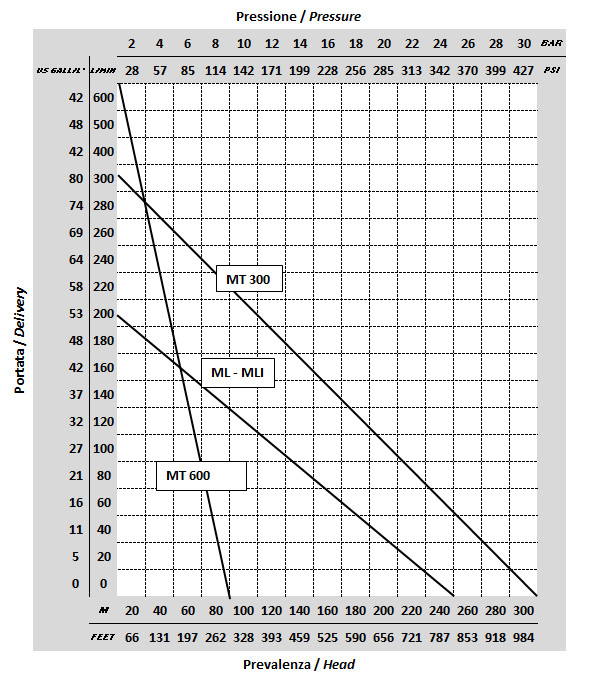

Code Template Max pressure Aspiration Delivery RPM 1 ‘ Hp l / 1 ‘washing / irrigation Dimensions cm Weight kg
0001.0281 MT 600 10 bar 60 mm 60 mm 700 10 000 / 600 30x30x30 23
0001.0281 MT 300 30 bar 40 mm 40 mm 700 10 170 / 300 25x25x25 20
0030.0401 ML 20 25 bar 30 mm 19 mm 700 5.5 70 / 180 20x20x20 10
0044.4013 ML 20 30/30 25 bar 30 mm 30 mm 700 5.5 70 / 180 20x20x20 10
0031.0411 MLI 25 25 bar 30 mm 19 mm 700 5.5 70 / 180 20x25x20 11
0031.0412 MLI 25 30/30 25 bar 30 mm 30 mm 700 5.5 70 / 180 20x25x20 11

Accessories and spare parts

The following accessories can be supplied with our pumps:

    • Hoses supplied for ML 20 and MLI 25 pumps – code: 0032.0421 (3 m suction hose D.30 mm, 7 m delivery hose D. 19 mm, filter, brass lance and clamps)
    • Hoses supplied for MT 300 pump – code 0003.0011 (3 m suction hose D.40 mm, 7 m delivery hose D. 19 mm, filter, brass lance and clamps)

  • Hoses supplied for ML 20 30/30 and MLI 25 30/30 pump – code 0032.0422 (3 m suction hose D.30 mm, 7 m delivery hose D. 30 mm, filter and clamps)
  • Hoses supplied for MT 300 pump – code 0003.0011 (3 m suction hose D.40 mm, 7 m delivery hose D. 40 mm, filter and clamps)

  • For pump series ML – MLI code: 00332.0501 ( 8 rollers, 1 O-ring, 4 sealing rings and 4 spacers)
  • For MT 300 pump code 0003.0011 (10 rollers, 1 O-ring, 4 sealing rings and 4 spacers)
  • For MT 600 pump code 0004.0512 (5 rollers, 1 O-ring, 4 sealing rings and 4 spacers)

  • Applicable to the power take-off of walking tractors and motor hoes with particular power take-off, they allow use with standard 1-3 / 8 ″ profile

DOWNLOAD

USE AND MAINTENANCE ML 20 – MLI 25 – MT 300
SPARE PARTS ML 20 – CODE 0030.0401
SPARE PARTS ML 20 30/30 – CODE 0044.4013
SPARE PARTS MLI 25 – CODE 0031.0411
MT 300 SPARE PARTS – CODE 0001.0391
